ANELLO RR 312A

Ø 75  |  12 W  |  IP20

Model name: ANELLO RR 312A
Type: Recessed Downlight with rim
Adjustability: Adjustable (Tilting 30°)
Power: 12W
Light source: CITIZEN LED cob
Source luminous flux 3000K Ra90: 1247 lm
CRI: >80 / >90
CCT: 3000K – 4000K
Beam angle: 18° – 27° – 36°
UGR: <19
Optic: Anti-glare reflector or cover

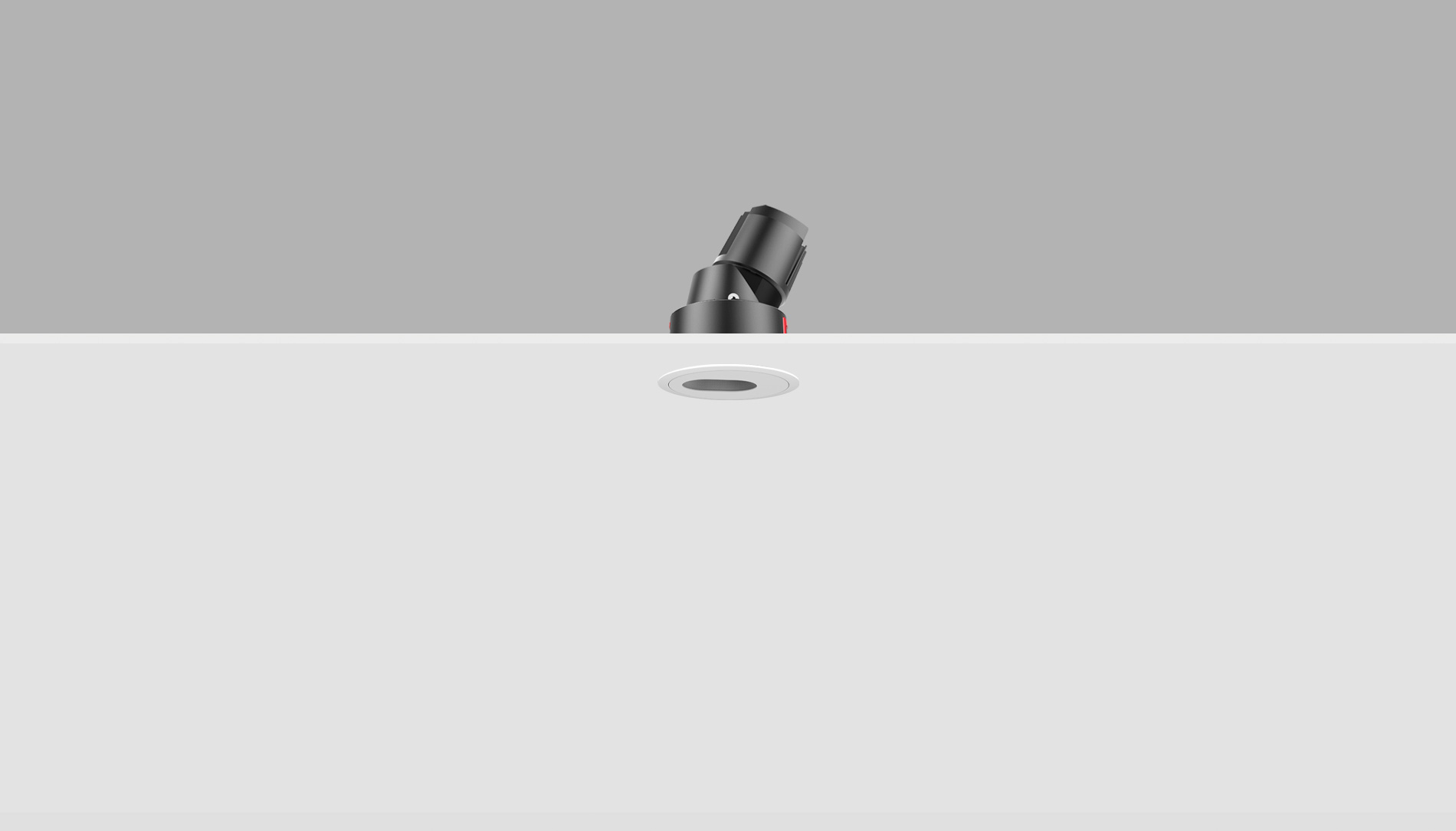

Cover options: E type
Reflector standard finish: Silver

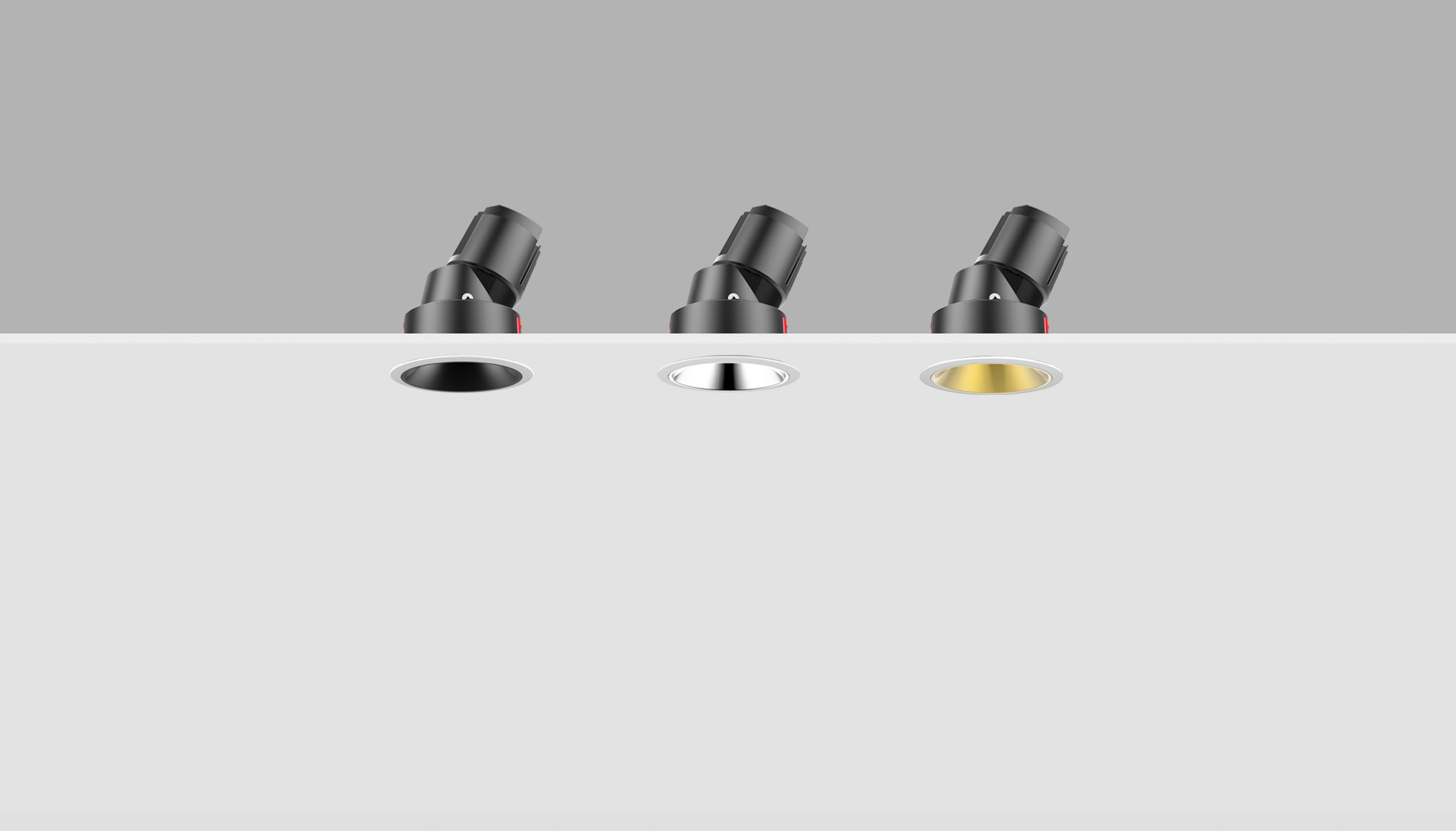

Options: Black / Gold reflector
Optic accessories: Honeycomb, Cross grille, Striped glass, Blue filter, Red filter, Green filter
IP Grade: IP20
Insulation Class: II
LED Driver: TRIDONIC
Input Driver: 220-240 V AC / 50-60 Hz
Input current luminaire: 350 mA
Material: Die-cast aluminum
Cut off: Ø 75 mm
Dimension: Ø 85 x H 110 mm
Dimming options: Triac / Dali / 0-10V / Not dimmable
Warranty: 3-5 Years

ANELLO RR 312 DIMENSION
ANELLO RR 312 DIMENSION
certifications icons Anello RR
CODE COMPOSITION
