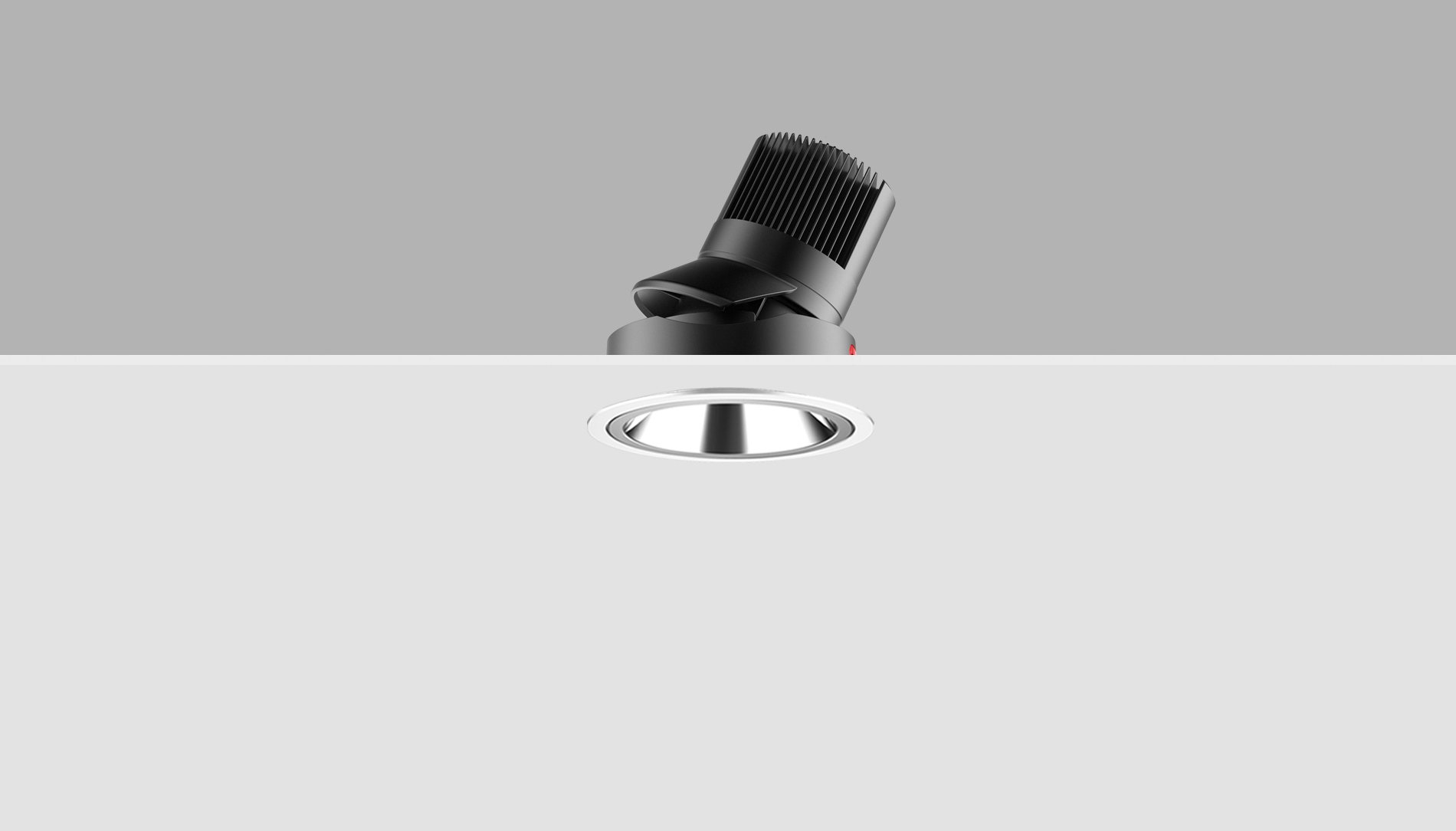

MAGNA 430

Ø 120  |  30 W

Model name: MAGNA 430
Type: Recessed Downlight
Adjustability: Fixed / Adjustable (Tilting 30°, orientation 350°)
Power: 30W
Light source: CITIZEN LED cob
Source luminous flux 3000K Ra90: 3108 lm
CRI: >80 / >90
CCT: 3000K – 4000K
Optic: Anti-glare reflector
Beam angle: 18° – 25° – 37°
UGR: <19
Reflector finish: Silver
Options: Black / Gold reflector
IP Grade: IP20
Insulation Class: II
LED Driver: PHILIPS
Input Driver: 220-240 V AC / 50-60 Hz
Input current luminaire: 700 mA
Material: Die-cast aluminum
Cut off: Ø 120 mm
Dimension: Ø 130 x H 145 mm
Dimming options: Triac / Dali / 1-10V / 0-10V / Not dimmable
Lifetime: L80 B20
Warranty: 5 Years

CODE COMPOSITION
