MAGNA SN-S 430

102 x 102  |  30W

Model name: MAGNA SN-S 430

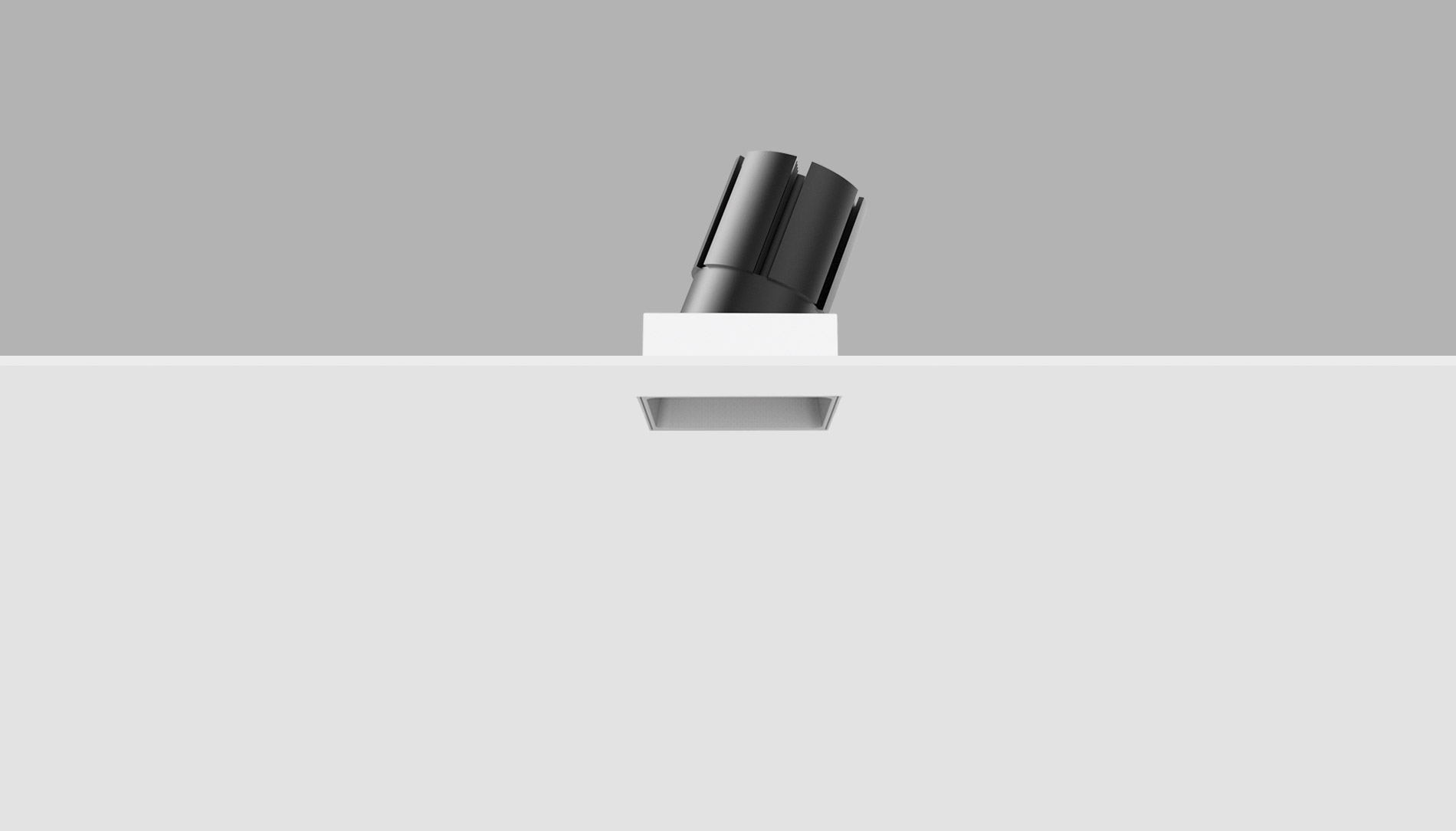

Type: Trimless Recessed Downlight
Adjustability: Tilting 25°
Power: 30W
Light source: PHILIPS LED cob
Source luminous flux 3000K Ra90: 3006 lm
CRI: >90
CCT: 3000K – 4000K
Optic: Anti-glare reflector
UGR: <19
Beam angle: 16° – 22° – 35°
Finish: Silver reflector – white inner ring – white trim frame
IP Grade: IP20
Insulation Class: II
LED Driver: PHILIPS
Input Driver: 220-240 V AC / 50-60 Hz
Input current luminaire: 700 mA
Material: Die-cast aluminum
Cut off: 102 x 102 mm
Dimension: 162 x 100 x H 130 mm
Dimming options: Triac / Dali / 1-10V / 0-10V / Not dimmable
Lifetime: L80 B20
Warranty: 5 Years

2D draw dimension of 30W downlight
2D icons of certifications
2D icons of certifications
CODE COMPOSITION
