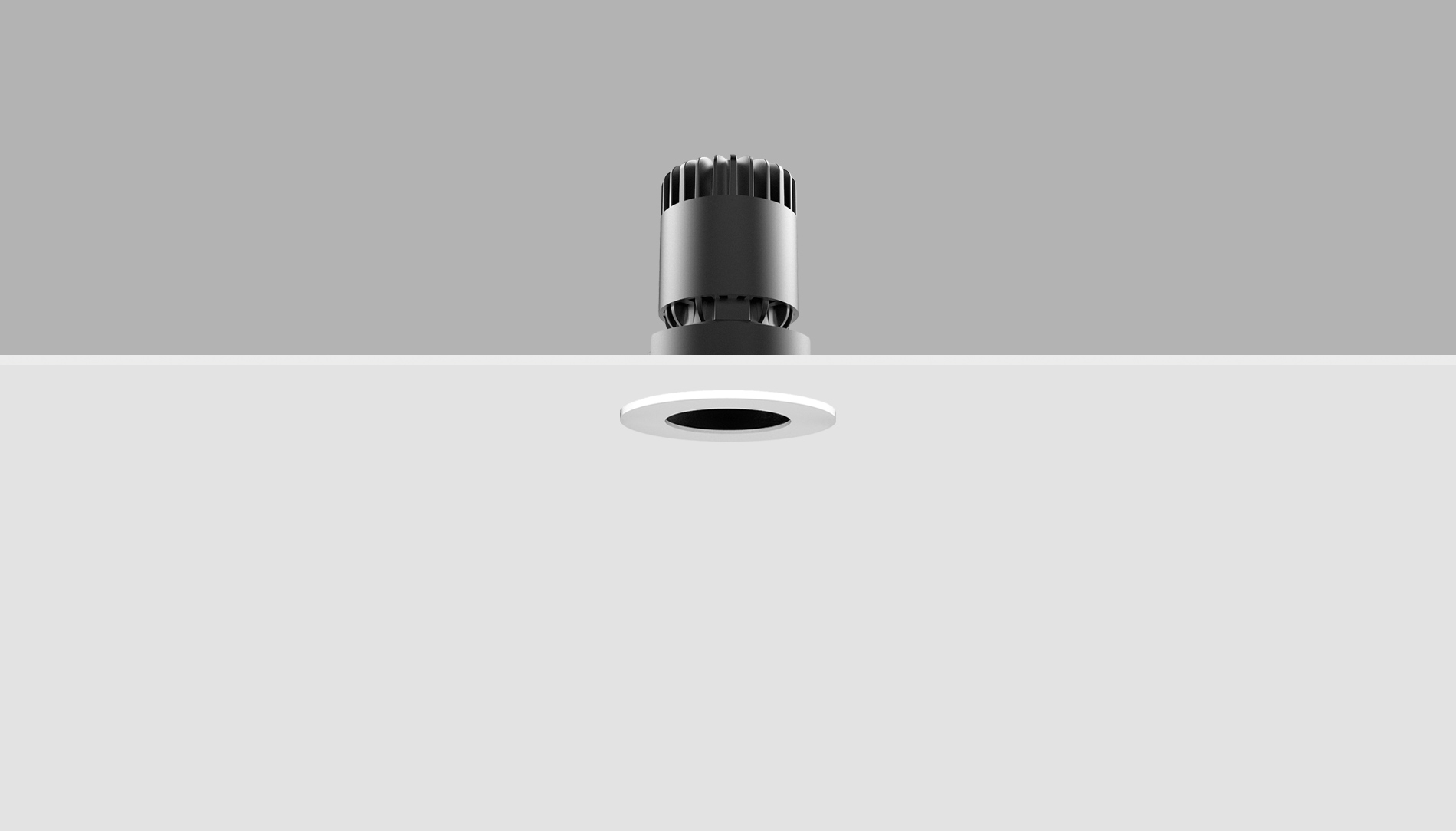

LUNA-O 310

Ø 75  |  10W

Model name: LUNA-O 310
Type: Recessed Downlight
Adjustability: Fixed / Tilting 25°
Power: 10W
Light source: CITIZEN LED cob
Source luminous flux 3000K Ra90: 1206 lm
CRI: >90
CCT: 3000K – 4000K
UGR: <19
Beam angle: 18°- 32°
IP Grade: IP20
Insulation Class: II
Input Driver: 220-240 V AC / 50-60 Hz
Input luminaire: 250 mA
Material: Die-cast aluminum
Ring type: O – White finish
Ring type options: O – Q – S – E
Cut off: Ø 75 mm
Dimension: Ø 90 x H 112 mm
Dimming options: Triac / Dali /1-10V / 0-10V / Not dimmable
Lifetime: L80 B20
Warranty: 5 Years

2D draw of LUNA downlight D90x112
2D draw of LUNA downlight D90x112
certifications of LUNA CE-rohs-raee-IP20-CRI90
certifications of LUNA CE-rohs-raee-IP20-CRI90

O type

detail of LUNA O ring type

E type

detail of LUNA E ring type

Q type

detail of LUNA Q ring type

S type

detail of LUNA S ring type
