LUNA-O SN 315

Ø 90  |  15W

Model name: LUNA-O SN 315
Type: Trimless recessed downlight

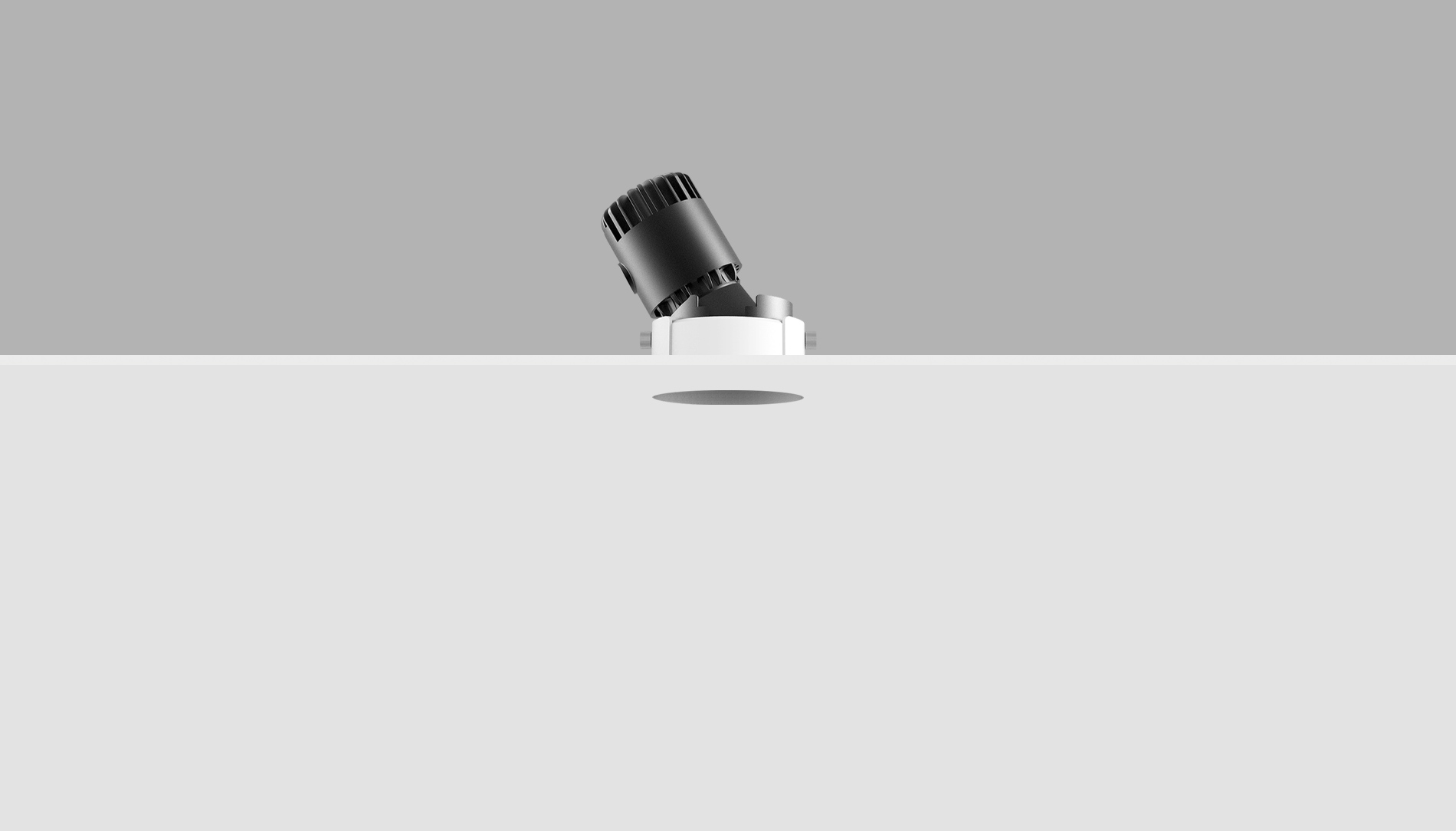

Adjustability: Fixed / Tilting 25°
Power: 15W
Light source: CITIZEN LED cob
Source luminous flux 3000K Ra90: 1364 lm
CRI: >90
CCT: 3000K – 4000K
UGR: <19
Beam angle: 16°- 20° – 31°
IP Grade: IP20
Insulation Class: II
LED Driver: PHILIPS
Input Driver: 220-240 V AC / 50-60 Hz
Input luminaire: 350 mA
Material: Die-cast aluminum
Ring type: O – White finish
Ring type options: O – Q – S
Cut off: Ø 90 mm
Dimension: 164 x H 132.5 mm
Dimming options: Triac / Dali /1-10V / 0-10V / Not dimmable
Lifetime: L80 B20
Warranty: 5 Years

LUNA SN size 164 x 132.5
LUNA SN size 164 x 132.5
luna sn 315 certifications
luna sn 315 certifications

O type

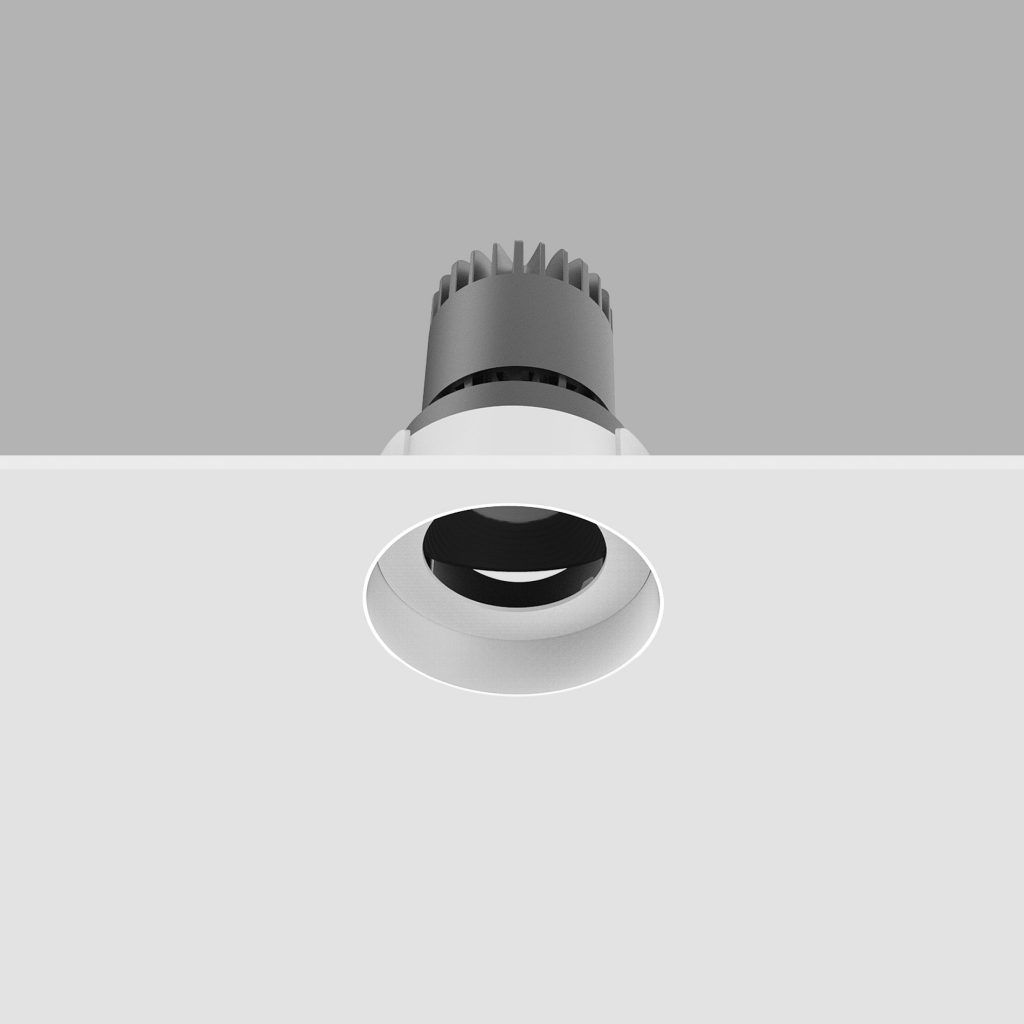

LUNA SN O

Q type

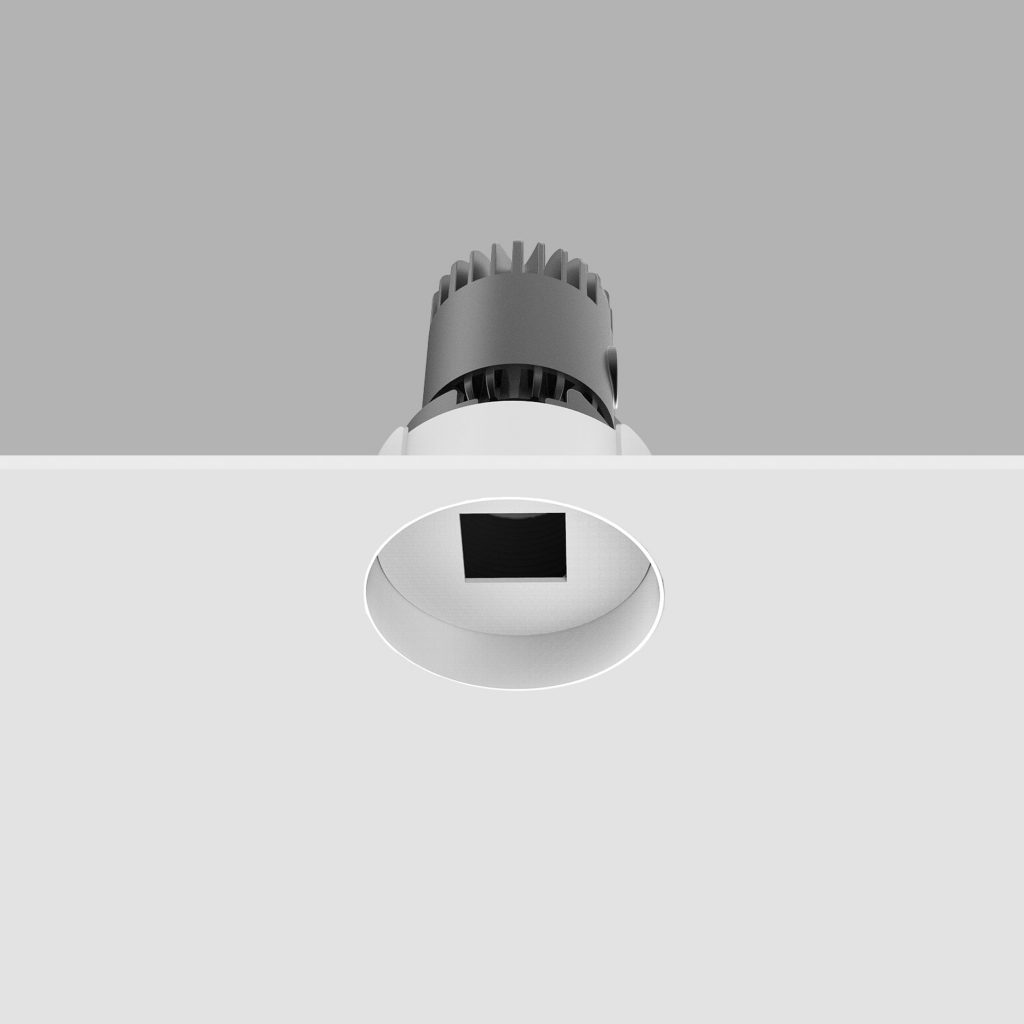

LUNA SN Q

S type

LUNA SN S
