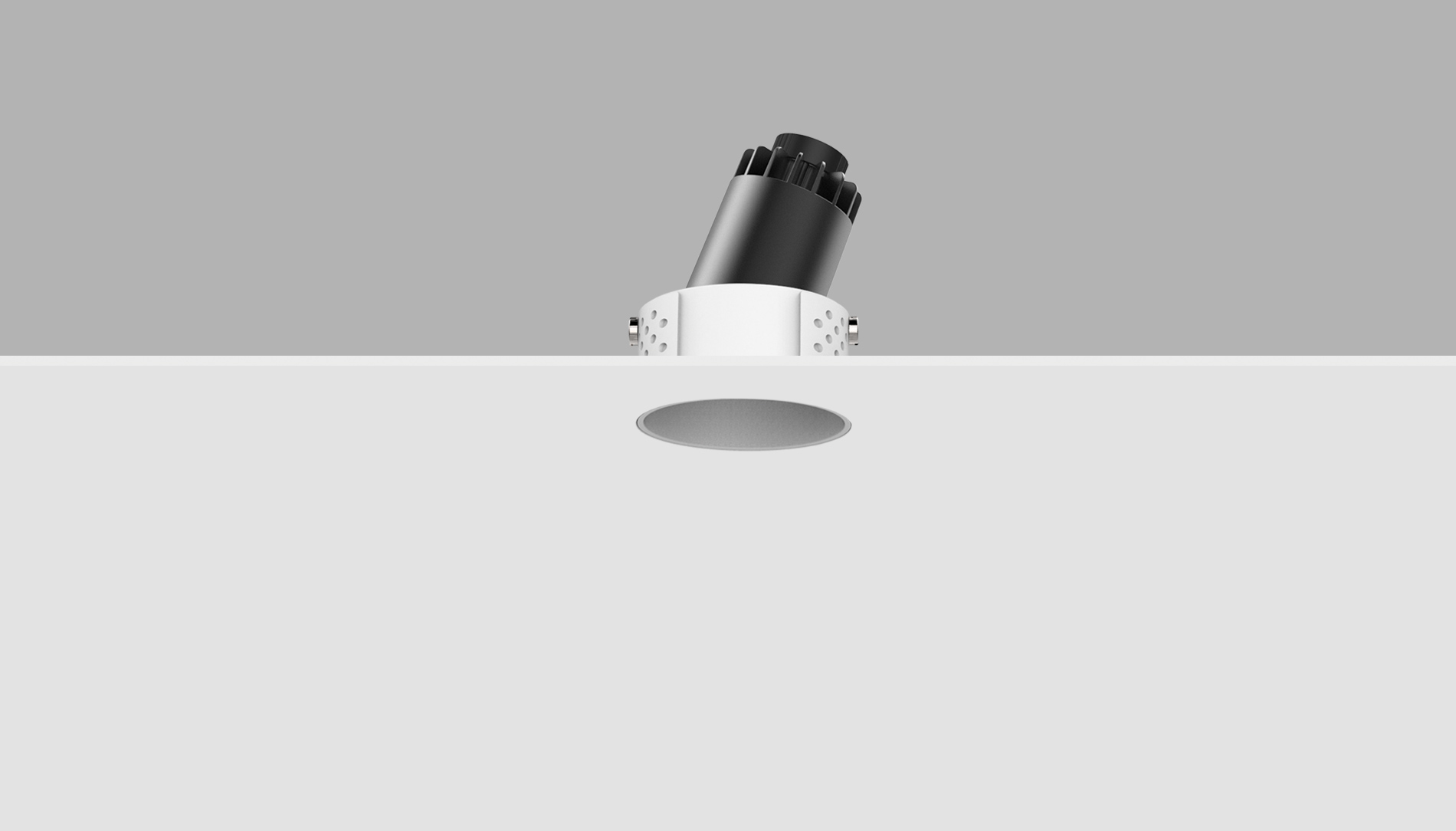

MAGNA SN-R 310

Ø 82  |  10W

Model name: MAGNA SN-R 310
Type: Trimless Recessed Downlight
Adjustability: Tilting 25°
Power: 10W
Light source: PHILIPS LED cob
Source luminous flux 3000K Ra90: 1518 lm
CRI: >90
CCT: 3000K – 4000K
Optic: Anti-glare reflector
UGR: <19
Beam angle: 18° – 27° – 35°
Finish: Silver reflector – white inner ring – white trim frame
IP Grade: IP20
Insulation Class: II
LED Driver: TRIDONIC
Input Driver: 220-240 V AC / 50-60 Hz
Input current luminaire: 250 mA
Material: Die-cast aluminum
Cut off: Ø 82 mm
Dimension: 117 x 70 x H 103 mm
Dimming options: Triac / Dali /1-10V / 0-10V / Not dimmable
Lifetime: L80 B20
Warranty: 5 Years

2D draw of magna snr
2D draw of magna snr
icons certifications
icons certifications
CODE COMPOSITION
