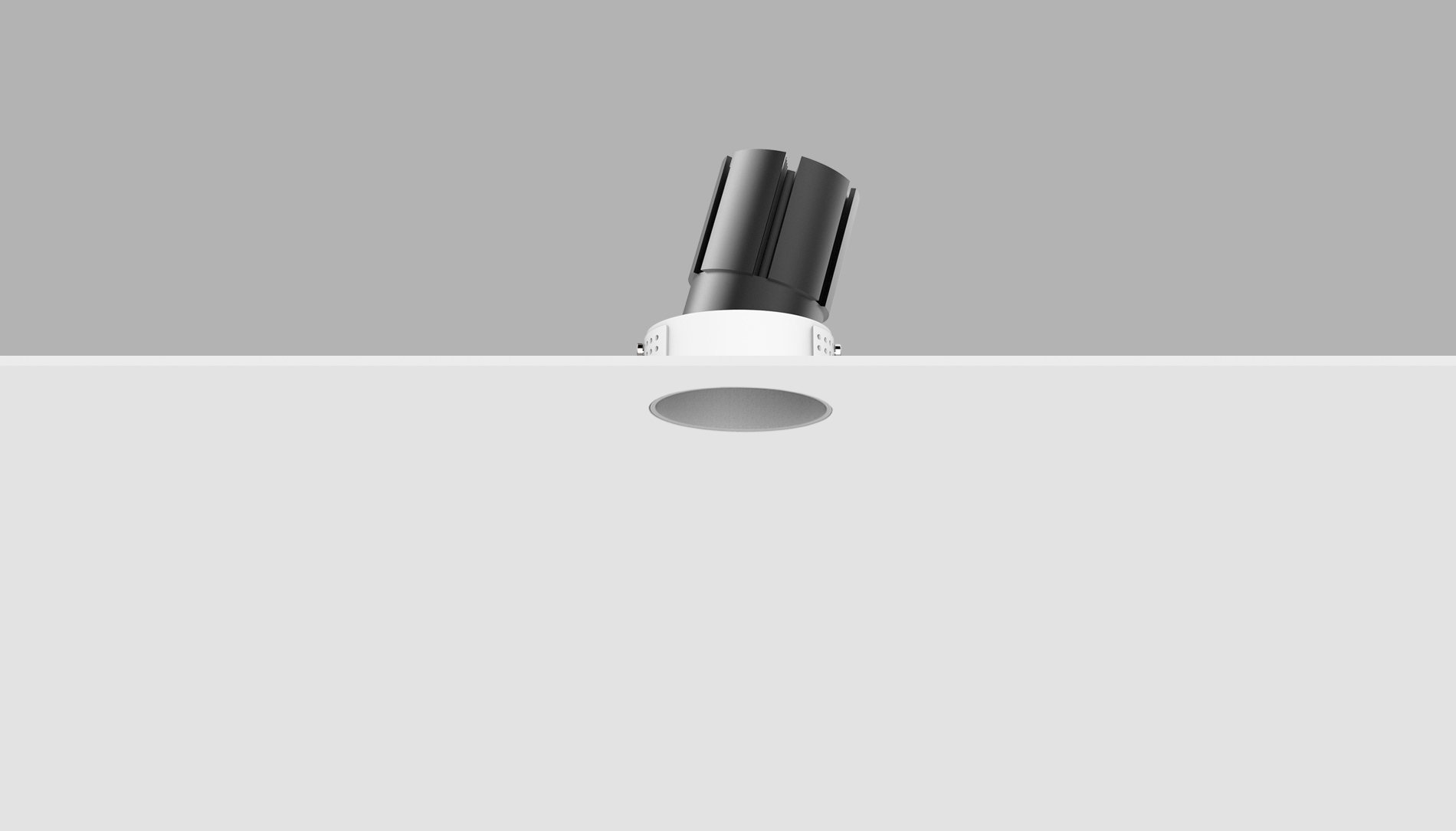

MAGNA SN-R 430

Ø 112  |  30W

Model name: MAGNA SN-R 430
Type: Trimless Recessed Downlight
Adjustability: Tilting 25°
Power: 30W
Light source: PHILIPS LED cob
Source luminous flux 3000K Ra90: 3006 lm
CRI: >90
CCT: 3000K – 4000K
Optic: Anti-glare reflector
UGR: <19
Beam angle: 15° – 22° – 35°
Finish: Silver reflector – white inner ring – white trim frame
IP Grade: IP20
Insulation Class: II
LED Driver: PHILIPS
Input Driver: 220-240 V AC / 50-60 Hz
Input current luminaire: 700 mA
Material: Die-cast aluminum
Cut off: Ø 112 mm
Dimension: 156,5 x 101 x H 130 mm
Dimming options: Triac / Dali / 1-10V / 0-10V / Not dimmable
Lifetime: L80 B20
Warranty: 5 Years

CODE COMPOSITION
